Strip Accumulator Systems

Description

Continuous production requires a continuous supply of strip material. Since tube and multilayer composite pipe production lines typically operate 24 hours a day, 7 days a week, Templet offers a range of strip accumulator systems designed to ensure uninterrupted operation during coil changes. Our strip accumulators temporarily store sufficient strip material while the end of one coil is joined to the beginning of the next. This allows the production line to continue running without interruption, maximizing productivity and minimizing downtime.

Depending on the application and production speed, we offer strip accumulators in various sizes and configurations. Our systems are capable of processing both ultra-thin and thicker strip materials made from a wide range of metals, ensuring maximum flexibility for different manufacturing requirements.


Today, Templet strip accumulators are used in numerous industrial applications wherever coil-fed strip material is processed. Engineered for reliability, precision, and long service life, they provide the ideal solution for stable and efficient continuous production.

Bandspeicher Aluminium

Looping Tower

The Looping Tower is an excellent choice for thin wall thicknesses. Here, the tape material is stored vertically in the tape storage unit.t.
learn more
Bandspeicher Edelstahl

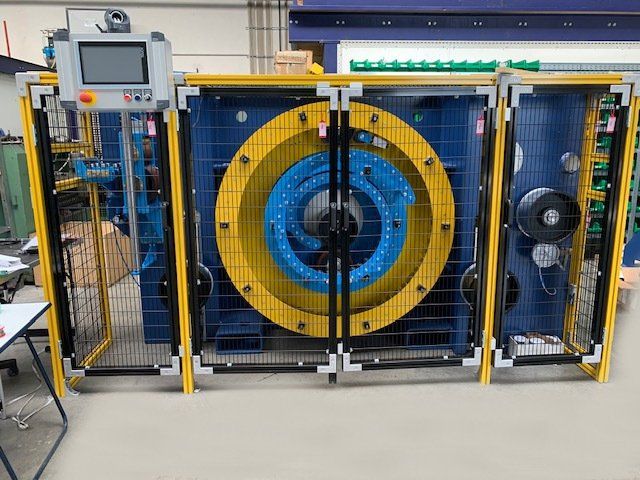

Rotamat

The Rotamat belt storage system is particularly suitable for stainless steel or materials with thicker walls and is characterized by its compact design.
learn more
Bandspeicher

Film storage

The foil storage tank was designed for particularly thin wall thicknesses (< 0.2 mm). Foil storage tanks are frequently used in reinforced pipe systems.
learn more
Bandspeicher induviduell

Special storage

Do you need a tape storage device for a very specific application?

We would be happy to help you create a completely individual product. Contact us! .

Contact

         LOOPING TOWER

Advantages:

    • Robust construction
    • Double-sided roller bearing
    • High speeds possible
    • Different sizes
    • Customizable to your individual needs
    • Ideally suited for thin wall thicknesses

      Technical data:



      • Maximum storage capacity: 230m
      • Maximum production speed: 100 m/min
      • Maximum material thickness: Aluminum up to 1.8 mm; stainless steel up to 1.2 mm
      • Maximum bandwidth: 650 mm



               ROTAMAT ACCUMULATOR

      Advantages:

        • Robust construction
        • Particularly suitable for stainless steel
        • High speeds possible
        • compact design (little space requirement)
        • different sizes
          • Rotamat 1000
          • Rotamat 1500
          • Rotamat 2000

          Technical data:



          • Maximum storage capacity: 150m
          • Maximum production speed: 60 m/min
          • Max. material thickness: Stainless steel up to 2.5mm
          • Maximum bandwidth: 200 mm



                   FOIL ACCUMULATOR

          Advantages:

            • Suitable for very thin wall thicknesses
            • Double-sided roller bearing
            • Different sizes
            • Customizable to your individual needs

              Technical data:



              • Maximum storage capacity: 100m
              • Maximum production speed: 35 m/min
              • Max. material thickness: Aluminum up to 0.2mm
              • Maximum bandwidth: 140 mm
