LXH-SERIE

Laser Strip welding machines

 Laser strip welding machines - LXH-SERIES
Efficiently welded – continuously produced
Templet offers a range of systems for welding metal strips, designed for applications where coil material is processed and uninterrupted production is required.
MEHR ERFAHREN

Description

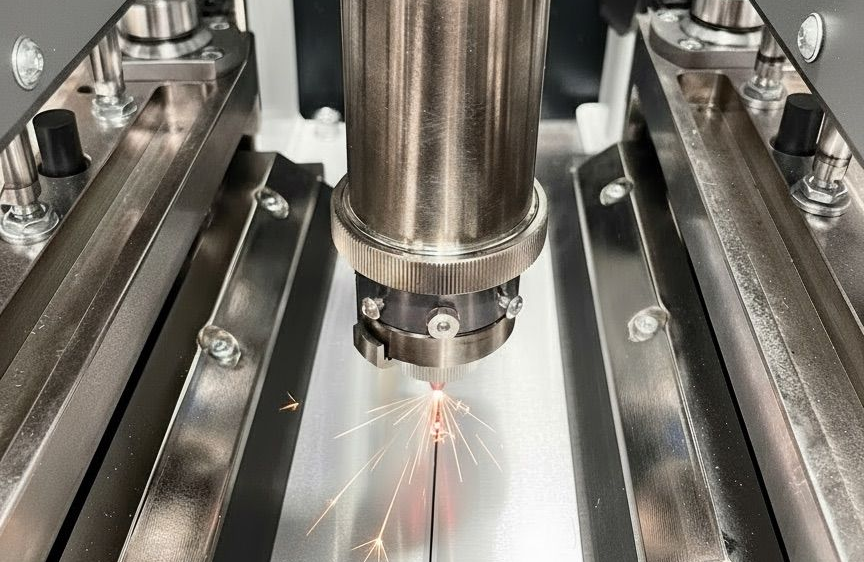

With our laser strip welding machines, two strips can be welded together with the highest precision and speed by laser.
Thanks to our many years of experience in thin-strip welding, we have developed systems capable of reliably joining materials with a thickness of only 0.05 mm.
This unique capability provides our customers with significant competitive advantages and opens up applications across numerous industries and sectors.

We offer our laser strip welding machines in three different sizes:
LXH80.0, LXH120.0, and LXH250.0 – suitable for a variety of strip widths and applications.

Advantages:

  • Easy to operate thanks to recipe management
  • Perfect weld seam through laser welding
  • Extremely precise guiding units
  • Integrated, fully automatic weld seam smoothing
  • Movable frame for use across multiple production lines
  • No heat-affected zone
    •

      Technical data:

    • Max. strip width: 250 mm
    • Min. strip width: 5 mm
    • Strip thickness: 0.05 mm – 3 mm (depending on material)
    • Possible strip materials: steel, stainless steel, aluminum, copper, special alloys
    • Laser power: 300 W – 1500 W
      •
