WRAPPING MACHINES

Spiral on course

Our tape wrappers enable you to wrap a wide variety of cable, pipe or profile types in a spiral with a thin metal foil (e.g. aluminum).
LEARN MORE

Wrapping lines

After increasing customer inquiries, Templet decided to build the first tape winders in 2010. At that time we could hardly have guessed what popularity this product would get in a very short time. Depending on the customer's requirements, our tape winding systems can be completely customized.
Although we offer three standard versions of the tape winders, this does not mean that we are inflexible. Depending on the size and options, we can wrap a wide variety of products.

Types of tape winders:

Verbundrohranlage

BANDWICKLER

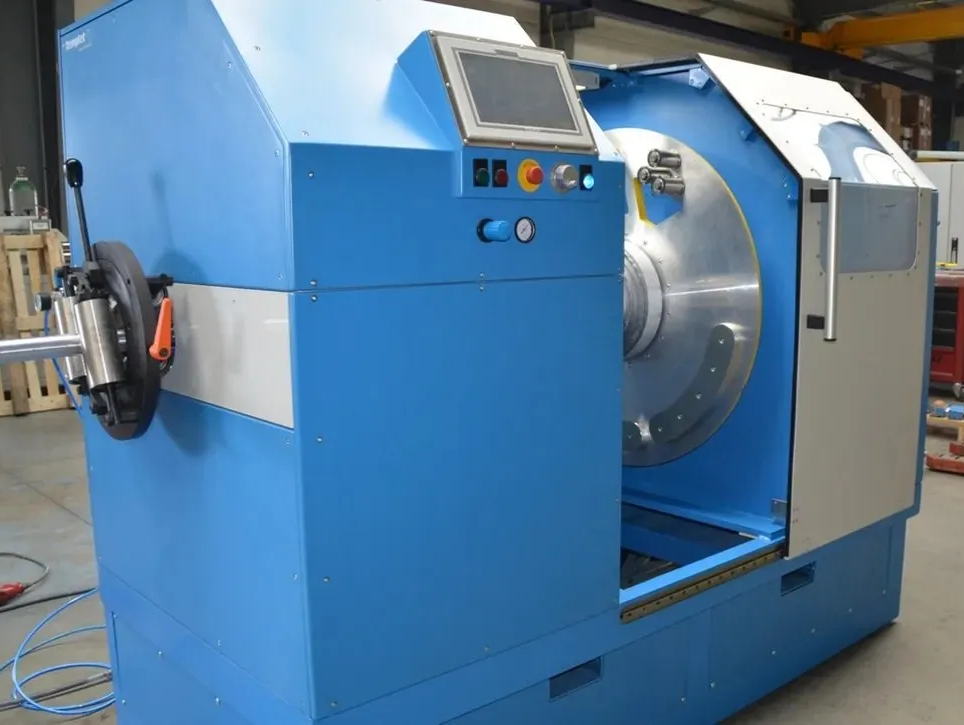

WRAP 100  (

The WRAP 100 winding system is particularly suitable for small winding dimensions and high line speeds.

- Winding dimensions: 6-100mm
- Line speed:
Max. 20m / min (depending on the dimension)
Verbundrohranlage

BANDWICKLER

WRAP 360

The wrapping system WRAP 360 is suitable
especially good for medium-sized dimensions

- Winding dimensions: 100-360mm
- Line speed: max. 8m / min (depending on the dimension)
Verbundrohranlage

BANDWICKLER

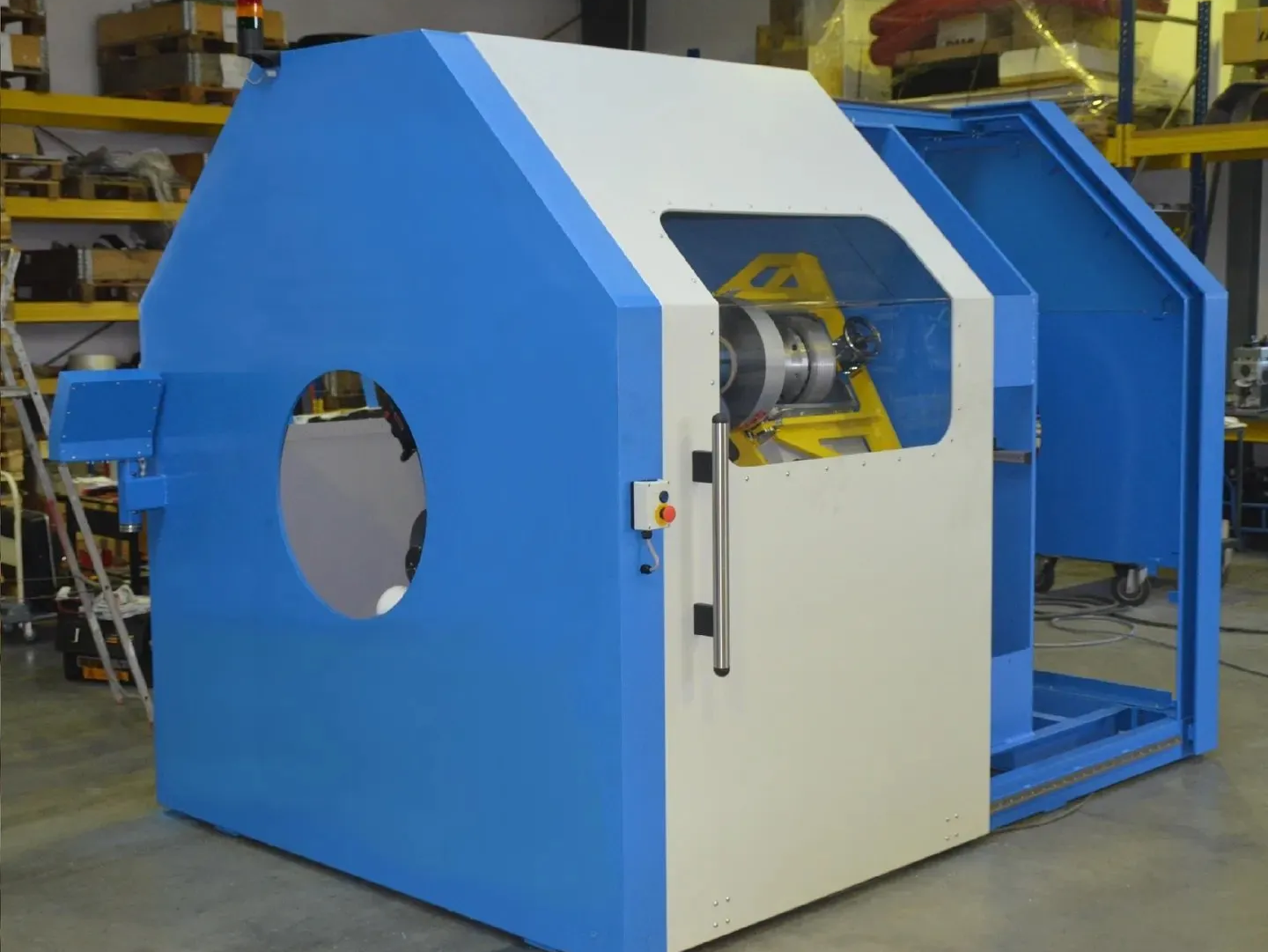

WRAP 630

The wrapping system WRAP 630 is suitable
especially good for large dimensions.
- Winding dimensions: 250-630mm
- Line speed:
Max. 3.5m / min (depending on the dimension)

Verbundrohranlage

BANDWICKLER

WRAP special

Do you need a tape winder for a very special application?
We would be happy to help you create a completely individual machine, tailored to your product. Contact us!.
Contact

WRAPPING LINES

Advantages of our systems:

  • Easy to use thanks to user-friendly controls
  • High precision at high line speed
  • Quick and easy tape change
  • compact design
  • easy handling
  • high production security
  • Industry 4.0
  • Great variety of products
  • Many options possible
  • Integration of customer requirements

WRAPPING LINES

Technical specifications:

  • Line speed: up to 20m / min
  • Dimensions: 6mm - 630mm
  • Material band: Aluminum, stainless steel, copper
  • Number of winding heads: 1-2
  • Plant control: Siemens
